Steel Bar Automatic Wire Mesh Welding Machine With 3000mm Width Mesh

Brand Name : MLG

Model Number : WHJ-3000

Certification : CE

Place of Origin : Hebei China

MOQ : One set

Supply Ability : 4--5 sets per month

Delivery Time : 30 days after receiving deposit or L/C.

Packaging Details : 1.steel bar welded wire mesh machine will be packed with plastic film. 2.The accessories will be packed with wooden box. 3.All the machines suitable 40 feet container to be loading.

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Model : WHJ-3000

Wire diameter : 5--12mm

Width of mesh : Max 3000mm

Copper electrodes : 26PCS

welding times : 0--60 times per min

Weight : Welded Wire Mesh Machine

Contact Now

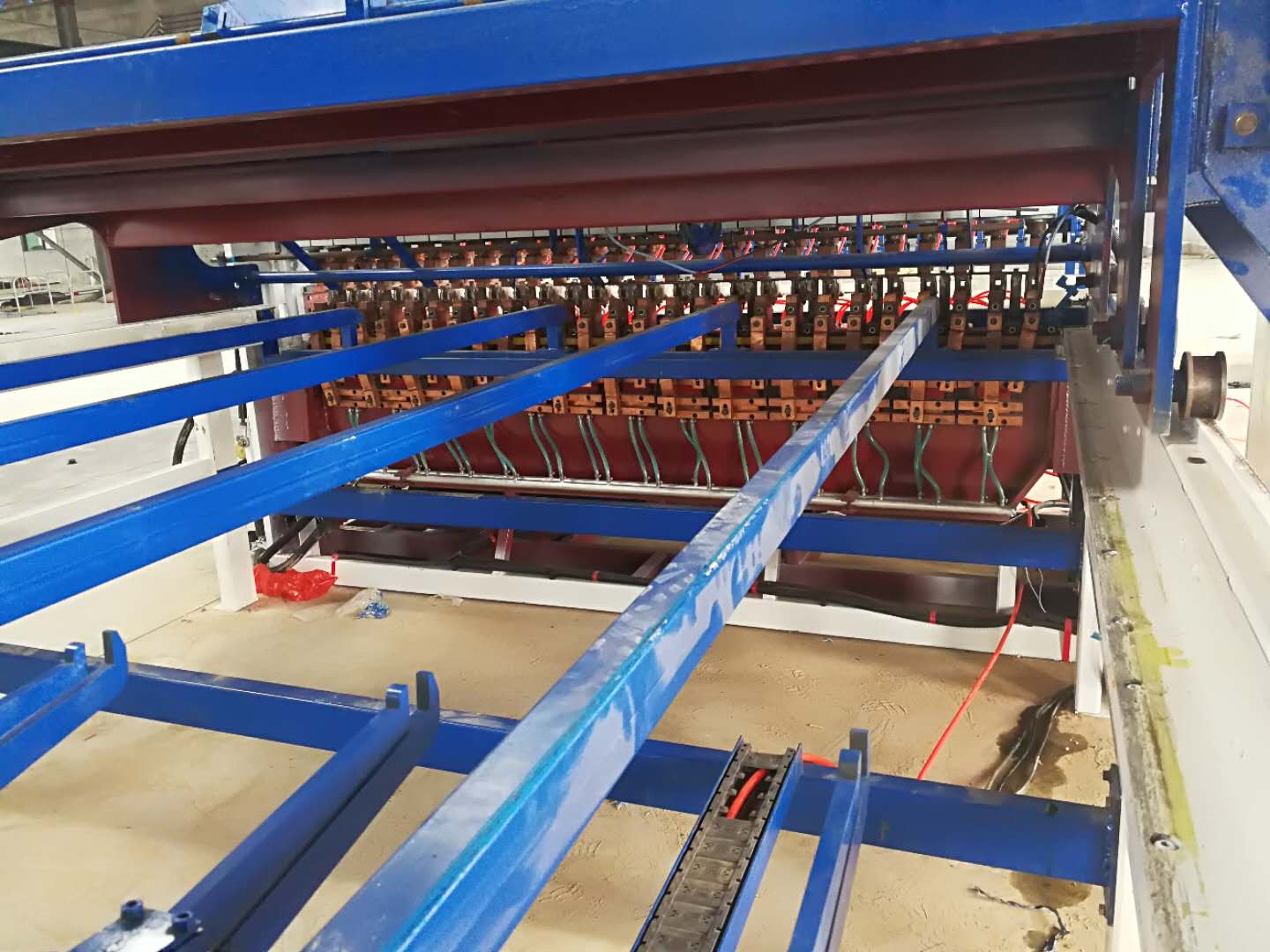

Seel Bar Automatic Welded Wire Mesh Welding Equipment 3000mm Width

Function features:air cylinder drived type

This kind Seel Bar Automatic Welded Wire Mesh Welding Equipment is our latest developed reinforcing mesh welding machine. The line wire and the weft wire are pre-straight and pre-cut. The line wire is feeding by the servo motor ,pulling the wire net by the servo motor auto. The welding power comes from the cylinders. It’s easy to control the welding pressure . The weft wire feeding from the multi hopper which capacity is more over ten times than the traditional hopper. The new machine added the bear wire net and carry equipment that makes the working more convenience . The welding part is used the springiness input wire trunking that makes the welding copper use for long time. This machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system. The input front-panel is touch screen , the operate is more intelligent and reasonable.

Products & Application:

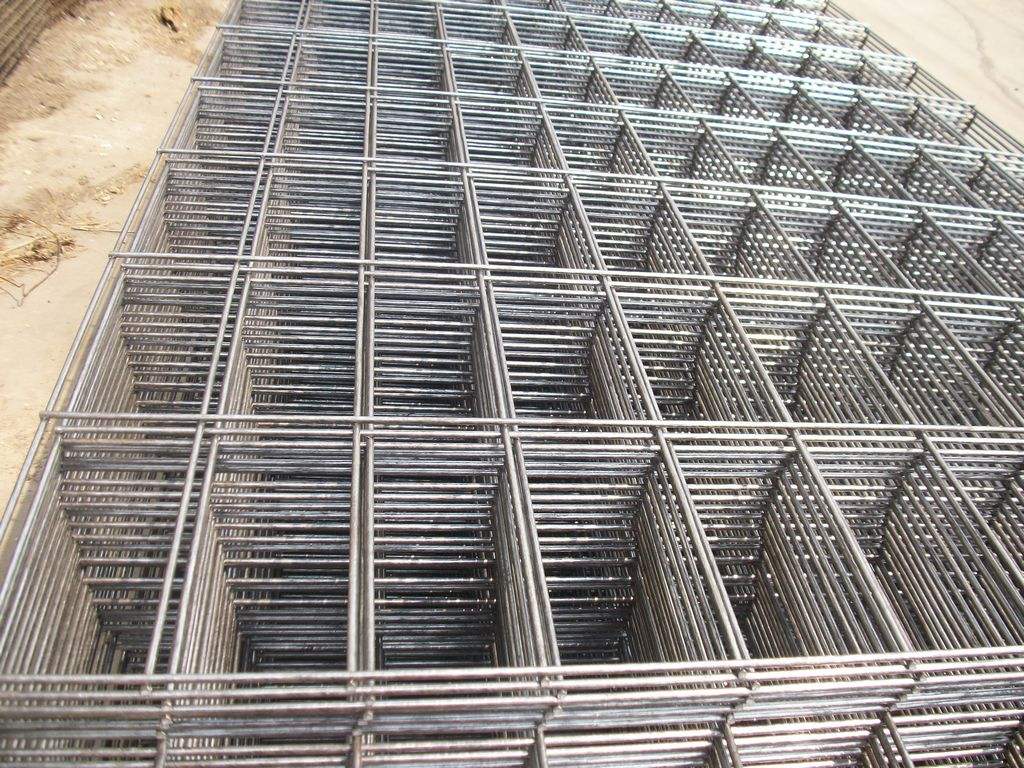

The welded mesh can be used in the floor & wall reinforcing mesh in the building, reinforcing mesh in the tunnel, bridge and road.

Technical parameter

Wire Mesh Welding Machinery
Wire diameter	5.0-12.0mm	Line wire form	pre-cut wire
Weft wire distance	mini 50mm	Weft wire form	pre-cut wire
Line wire distance	100-300mm	Rated voltage	380v 50Hz
Welding net width	3000mm	Rated power	125kvax12
Welding speed	60tiemes/min	Overall dimension	12* 3.5* 2.65m
line wire No.	31	Length wire net	6000mm
