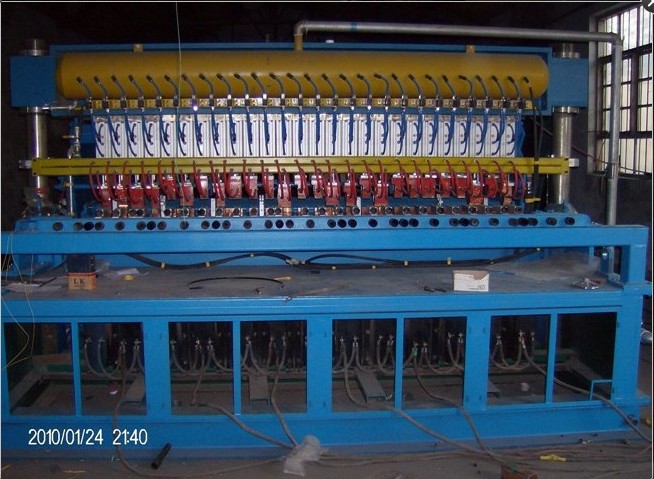

Pneumatic Reinforced Rebar Mesh Welding Machine
Function features
1. Both of the warp wire and weft wire are pre-cut by wire straightening and cutting machine. And line wire will be placed by manual and feeding trolley, cross wire will falling automatically.
2. Servo motor control line wire automatic feeding system
3. The welding power comes from pneumatic, with the advantages of pressure is consistent, stable and easy to adjust.
4. Pulling mesh system uses servo motor, in this case the mesh size is adjustable and accurate.
5. The controlling system adopts Mitsubishi PLC, all the parameters are input by touch screen.
The main parameter :
| Technical items | Parameters | Parameters | |
| Wire diameter | 5-12mm | 5-12mm | |
| Cross wire space | 100--300mm | 100-300mm | |
| Line wire space | 50--200mm | 50-200mm | |
| Number of electrodes | 24 | 30 | |
| Max. mesh width | 2500mm | 3000mm | |
| Mesh length | 3000 -12000mm | 3000-12000mm | |
| Rated power | 120kvax12 | 120kvax15 | |
| Welding speed | 30-50 times/min | 30-50 times/min | |
| Weight | 7.5t | 9.5t | |
| Overall dimension | 24x6.0x2.65m | 24x6.5x2.65m | |
| Cross wire form | pre-cut wire | pre-cut wire | |
| Line wire form | pre-cut wire | pre-cut wire | |
| Welding transformer | with water cooling system | with water cooling system | |
| Mesh pulling way | Controlled by PLC | Controlled by PLC | |
| Cross wire feeding way | Automatic falling ,one by one | automatic falling,one by one | |
| Material | low carbon steel wire, galvanized wire or ribbed wire | Low carbon steel wire, galvanized wire or ribbed wire |
Applications;

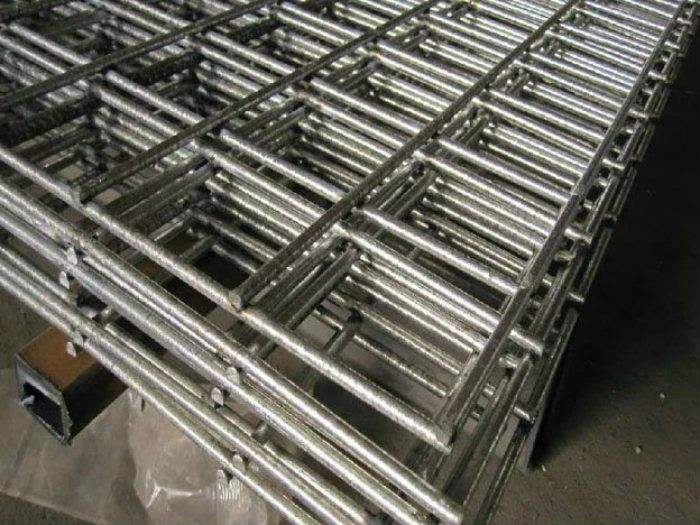

Steel fabric used in industrial and civil building beam floor, roof, wall, concrete road and bridge deck pavement, airport runway, tunnel lining, box culvert, dock floor, prefabricated components, and other fields.
